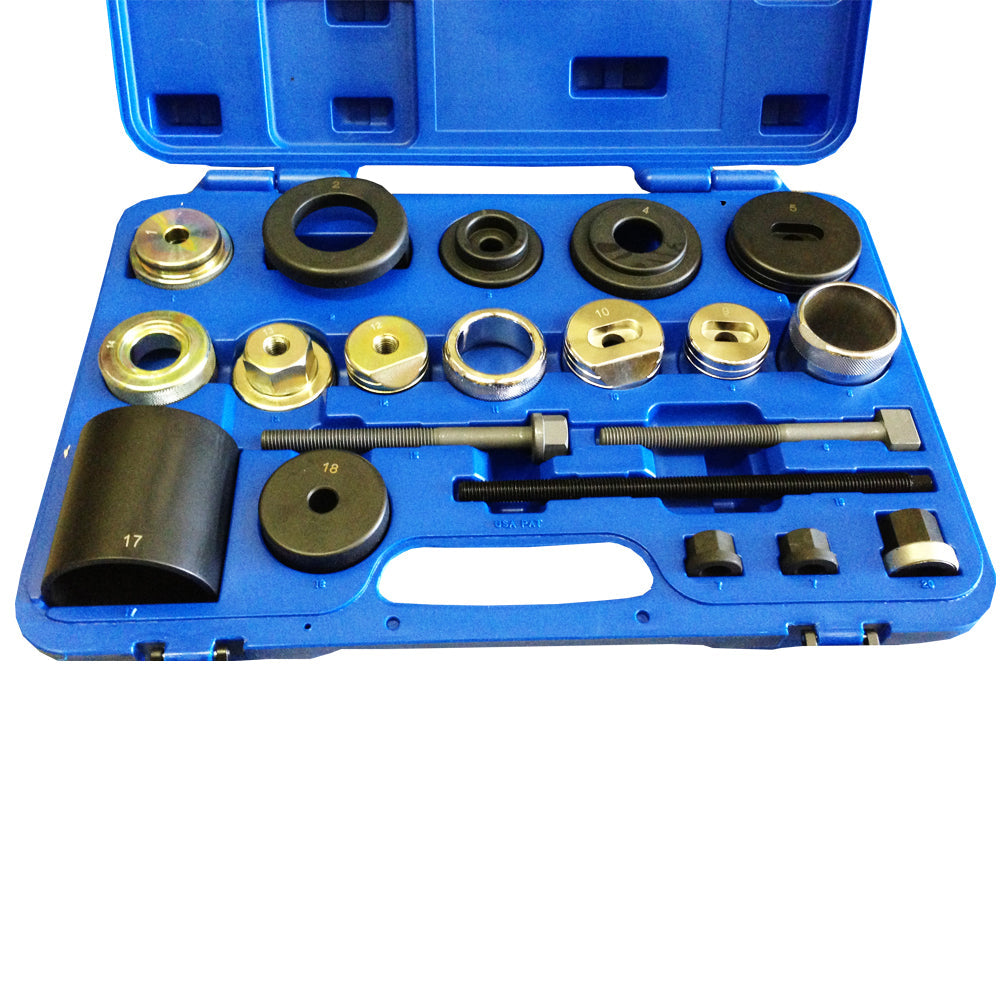

Master Trailing Arm Bushing Tool Set for BMW E36 / E46

This tool set allows for on-car installation AND removal of the three rear bushings located on the semi-trailing arm of E36 and E46 BMW 3-series cars:

• Upper control arm bushing
• Lower control arm bushing
• Trailing arm bushing

The tool set includes fixtures to service both the new-style and old-style trailing arm bushings.  The old-style is a conventional bushing with a one-piece outer shell.  The new-style bushings have a two-piece outer shell and are being supplied by BMW and aftermarket channels as universal replacements.

This kit is the first to feature ball bearing thrust plates on all operations … this reduces the amount of force required and prolongs tool life.

The ability to service these bushings on-the-car saves hours of labor and avoids significant disassembly of suspension and driveline components.

Application Detail:

E36 Chassis – BMW 3 Series

Sedans

• 316i (1990-1993) M40B16
• 316i (1993-1998) M43B16
• 318i (1990-1993) M40B18
• 318i (1993-1998) M43B18
• 318iS (1992-1996) M42B18
• 318iS (1996-1998) M44B19
• 318tds (1994-1998) M41D17
• 320i (1991-1994) M50B20
• 320i (1994-1998) M52B20
• 323i (1995-1998) M52B25
• 325i (1991-1995) M50B25
• 325td (1991-1998) M51D25
• 325tds (1993-1998) M51S
• 328i (1994-1998) M52B28
• M3 (1997-1998) S50B30
• M3 Evo (1995-1998) S50B32

Coupes

• 316i (1993-1998) M43B16
• 318is (1992-1996) M42B18
• 318is (1996-1999) M44B19
• 320i (1992) M50B20
• 320i (1992-1998) M52B20
• 323is (1995-1999) M52B25
• 325is (1992-1995) M50B25
• 328i (1995-1998) M52B28
• 328is (1995-1999) M52B28
• M3 (1992-1995) S50

Convertibles (Cabriolets)

• 318ic (1994-1998) M43B18
• 320ic (1993-1994) M50B20
• 320ic (1994-1998) M52B20
• 325ic (1993-1994) M50B25
• 328ic (1995-1999) M52B28
• M3 (1994-1996) S50B30
• M3 (1996-1998) S52B30

Touring (Wagons)

• 316iT (1998) M43B16
• 318iT (1995-1998) M43B18
• 318tds (1995-1998) M41D17
• 320iT (1995-1998) M52B20
• 325iT (1996-1998) M52B25
• 325tds (1995-1998) M51S
• 328iT (1995-1998) M52B28

Compact

• 316i (1994-1998) M43B16
• 318tds (1995-1998) M41D17
• 318ti (1994-1996) M42B18
• 318ti (1996-1998) M44B19
• 323ti (1996-1998) M52B25

E46 Chassis – 3 series

• 316i (1998-2001)
• 316i/ti (2001-2005)
• 318i (1998-2001)
• 318i/Ci/ti (2002-2007)
• 318Ci (2005-2007)
• 320i (1998-2000)
• 320i/Ci (2001-2007)
• 323i/Ci (1998-2000)
• 325i/xi/Ci/ti (2001-2007)
• 328i/Ci (1998-2000)
• 330i/xi/Ci (2001-2007)
• M3 (2001-2006)
• M3 CSL (2003-2004)
