SKU: U3276

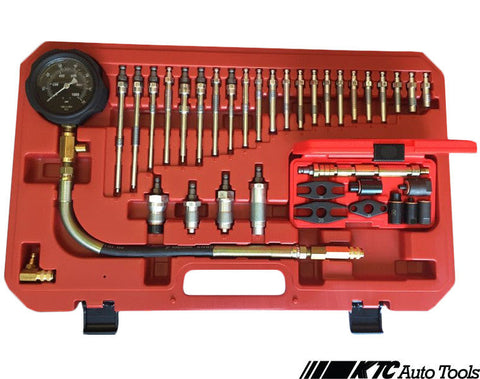

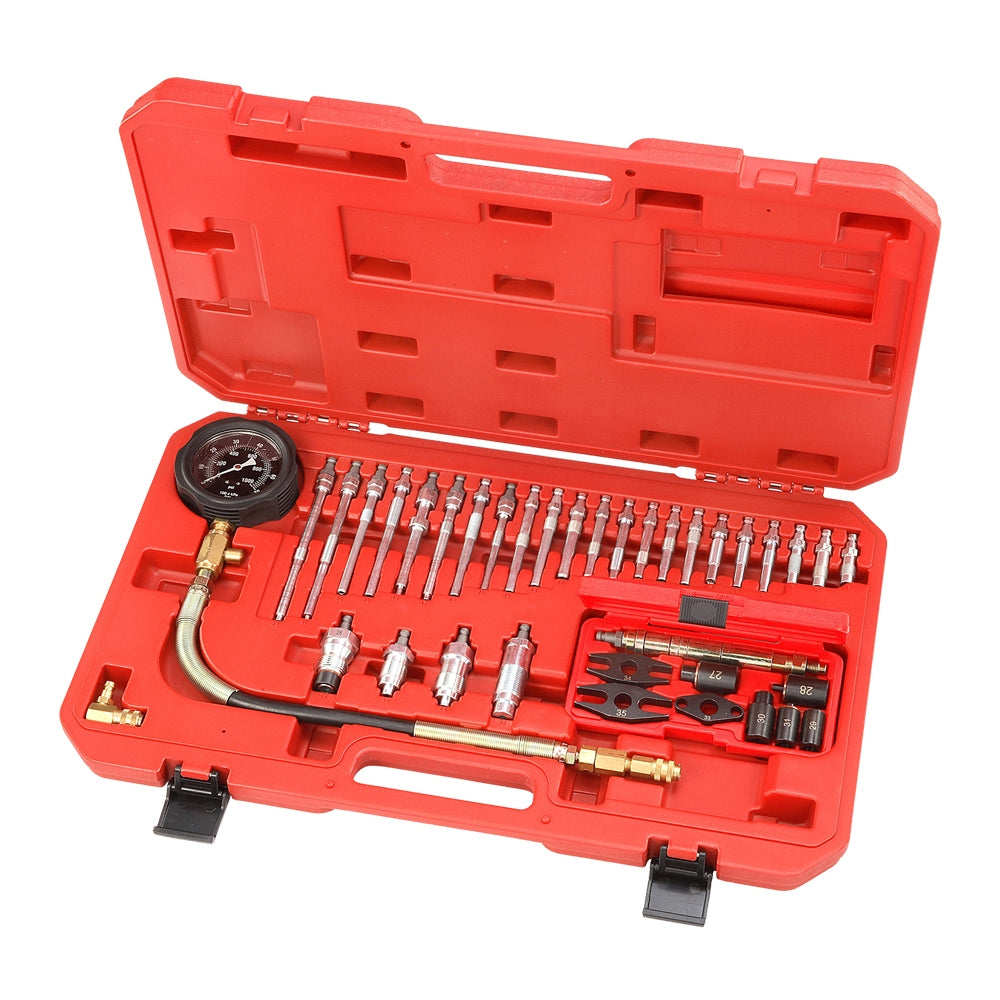

Diesel Compression Tester (37 PCS)
- Kit includes high quality hydraulic pressure gauge.
- Gauge reading: 70 bar / 1000 psi.
- Provided with 22 glow plug adapters, 4 injector adapters and 1 set clamp-on universal injector adapter, covering a wide vehicle application.
- :
Test Adaptors Size Length 1 M12x1.25 17.5mm 2 M12x1.25 20mm 3 M10x1.25 28.5mm 4 M10X1.25 42mm 5 M10x1.25 45mm 6 M10x1.25 44mm 7 M10x1.0 54mm 8 M10x1.0 43mm 9 M10x1.0 26mm 10 M10x1.25 32mm 11 M10x1.0 35mm 12 M12x1.25 58mm 13 M10x1.0 71mm 14 M10x1.0 59mm 15 M8x1.0 61mm 16 M10x1.25 85mm 17 M10x1.0 80mm 18 69mm 19 M10x1.25 102mm 20 M9x1.0 88mm 21 M10x1.25 85mm 22 M10x1.0 73mm 23 M22x1.5 42mm 24 M24x1.5 28mm 25 M20x1.5 29mm 26 M24x2.0 26mm
- Remove original injector or glow plug.
- Choose suitable test parts with appropriate length to match original injector/glow plug.
- Connect the test adapter on vehicle.
- Connect with gauge and start engine compression testing.
